Test Report of v0.5 Version
This appendix is a test report of the first manufactured and assembled PCB (version v0.5).
PCB manufacturer: PCBWay (China)
PCB assembly: PCBWay (China)
PCB arrival date: 2021/04/14
Execution date: 2021/04/16 to TBC
Tester: G. M. Marcelino
Visual Inspection
Test description/Objective: Inspection of the board, visually and with a multimeter, searching for fabrication and assembly failures.
Material:
Multimeter UNI-T DT830B
Results: The results of this test can be seen in Figures Fig. 35 (top view of the board) and Fig. 36 (bottom view of the board).
Conclusion: No problems were identified on this test.

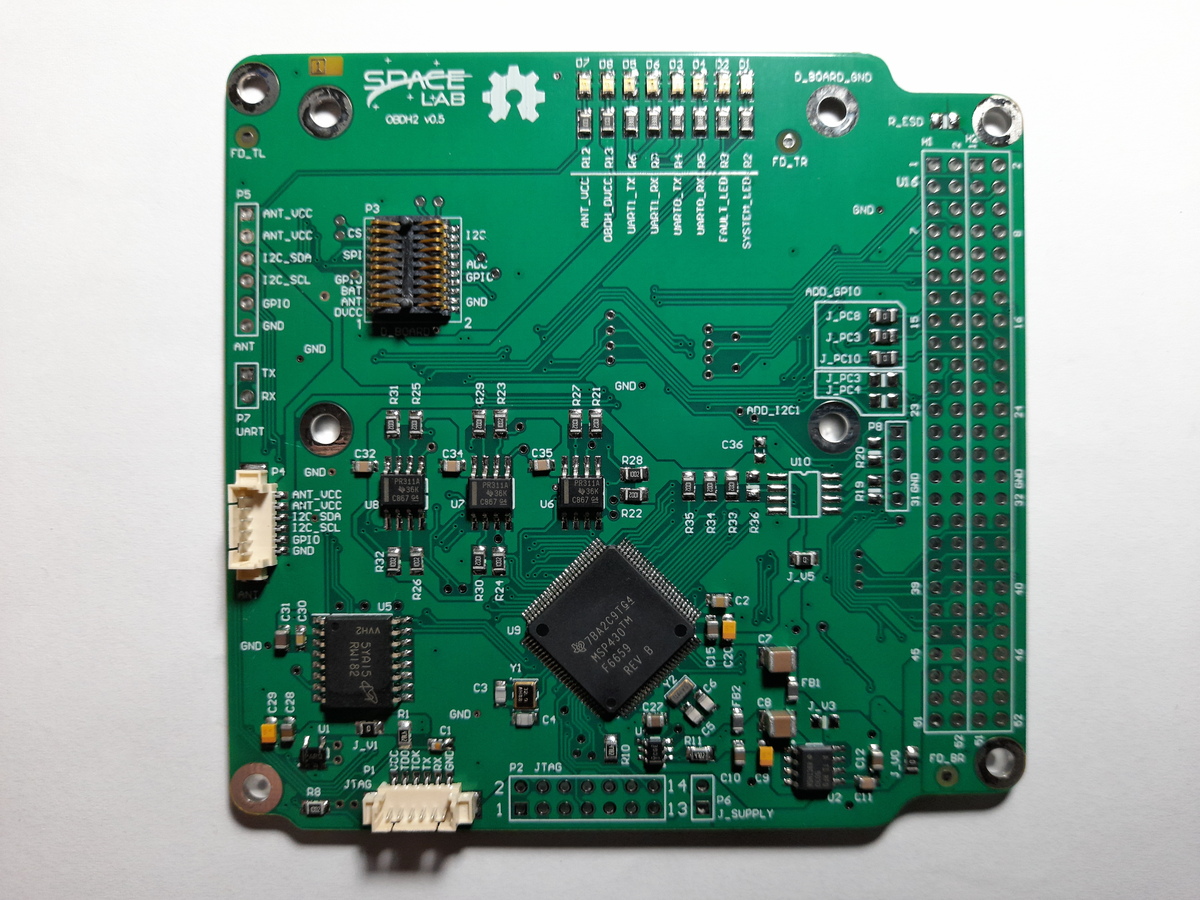

Fig. 35 Top view of the OBDH 2.0 v0.5 board.

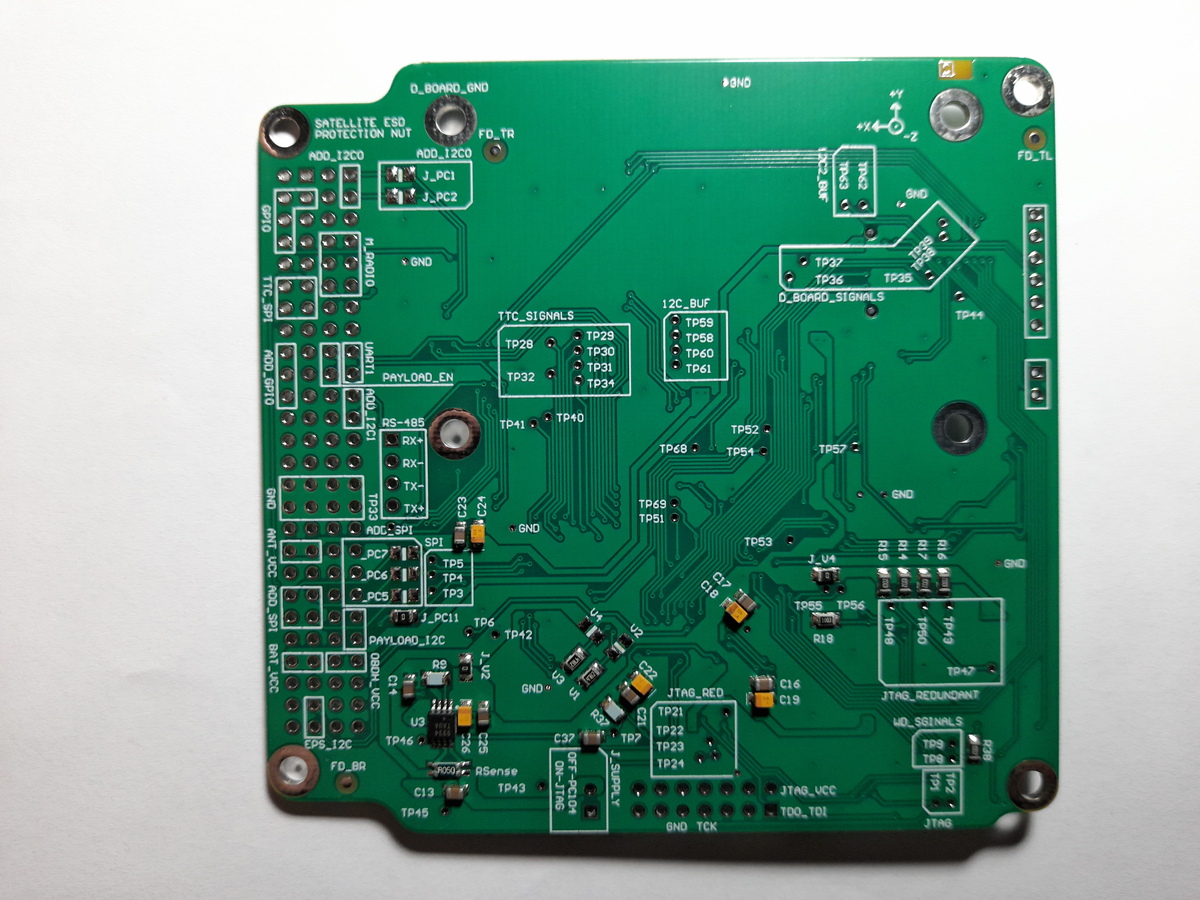

Fig. 36 Bottom view of the OBDH 2.0 v0.5 board.
Firmware Programming
Test description/Objective: Inspection of the board, visually and with a multimeter, searching for fabrication and assembly mistakes.
Material:
Code Composer Studio v9.3.0
MSP-FET Flash Emulation Tool
USB-UART converter
Screen (Linux software)
Results: The results of this are available in Fig. 37, where the log messages of the first boot of the board can be seen.
Conclusion: No problems were identified on this test.

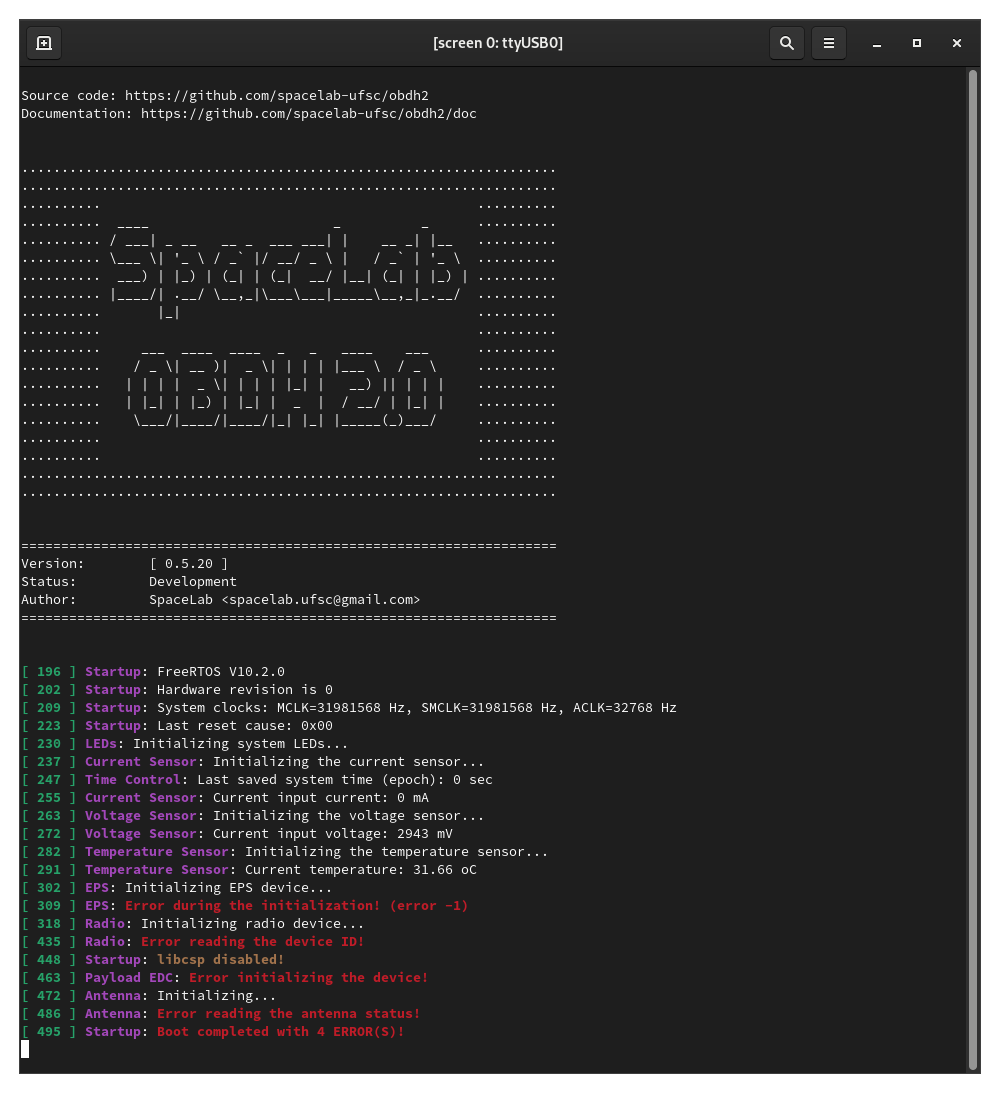

Fig. 37 Log messages during the first boot.
Communication Busses
Test description/Objective: Test the communication busses of the board, as listed below:
I\(^{2}\)C Port 0
I\(^{2}\)C Port 1
I\(^{2}\)C Port 2
Material:
Saleae Logic Analyzer (24 MHz, 8 channels)
Saleae Logic software (v1.2.18)
MSP-FET Flash Emulation Tool
Results: The results of this test can be seen in Figures Fig. 38, Fig. 39 and Fig. 40.
Conclusion: No problems were identified on this test, all buses are working as expected.

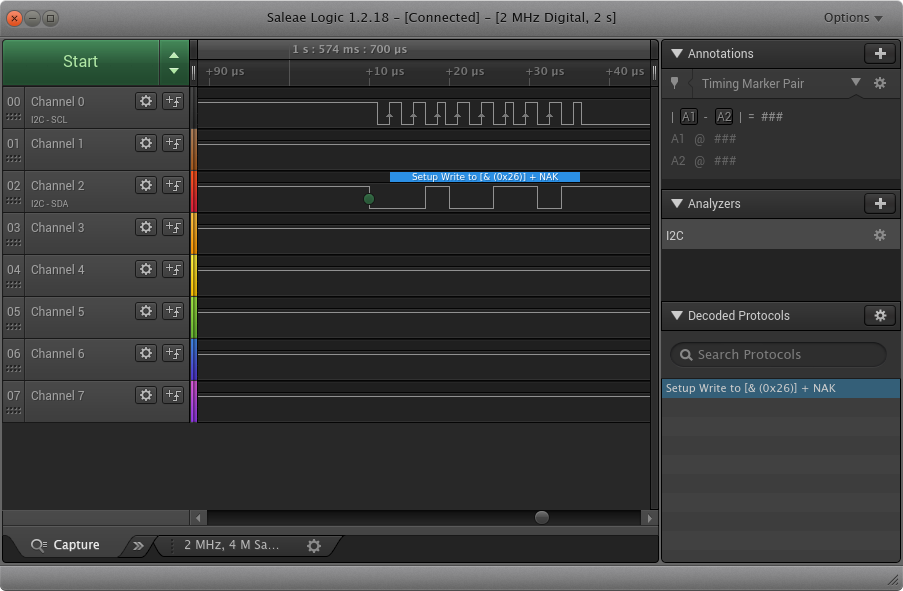

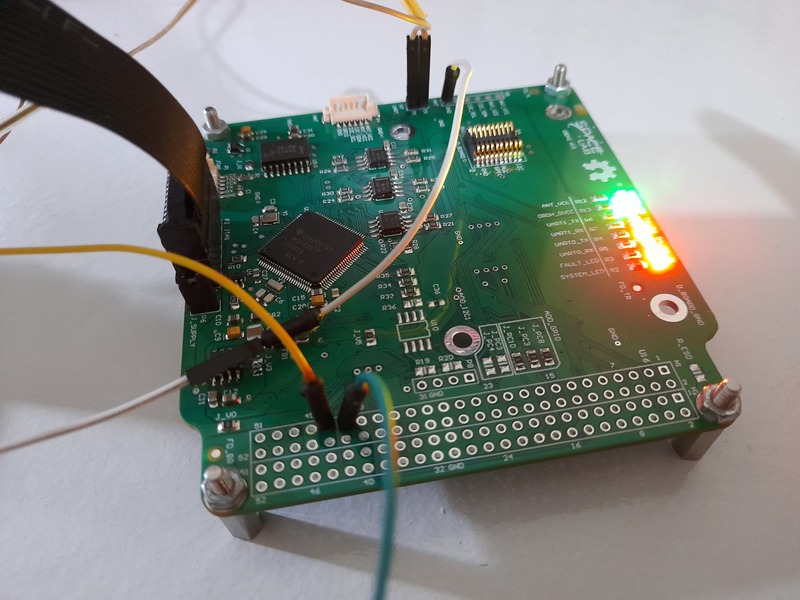

Fig. 38 I2C port 0 test.

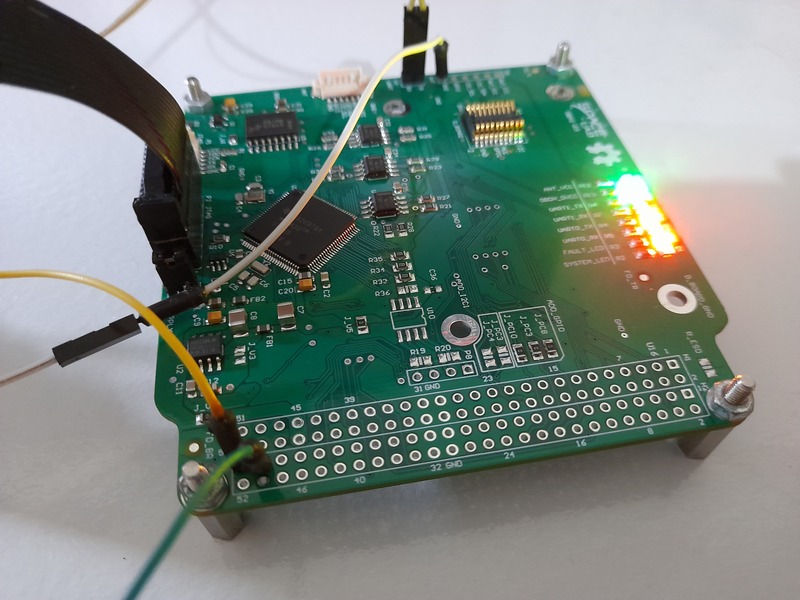

Fig. 39 I2C port 1 test.

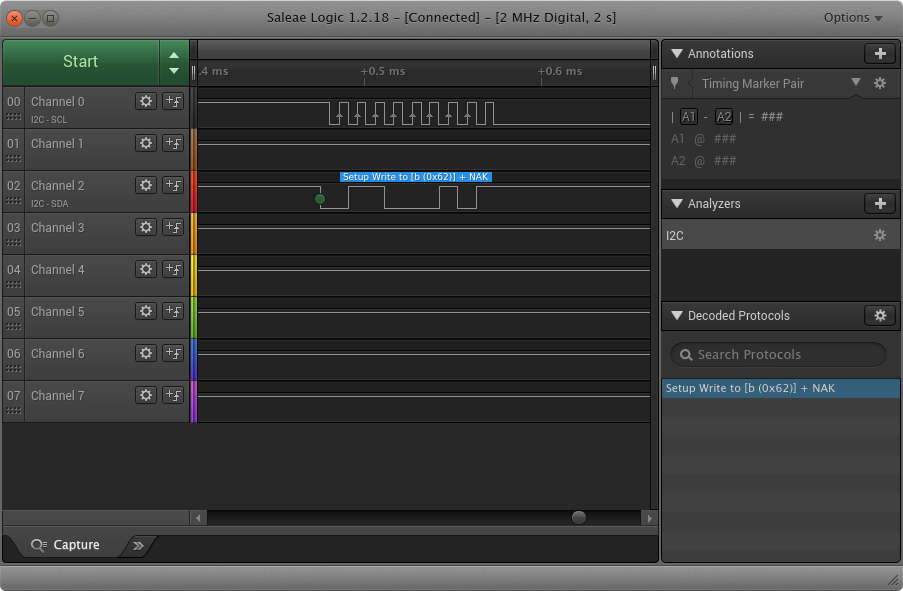

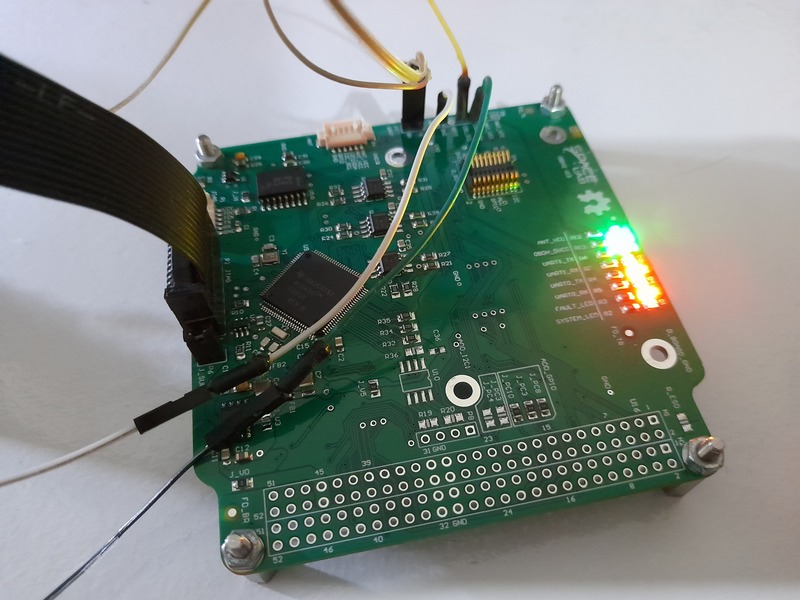

Fig. 40 I2C port 2 test.
Sensors
Input Voltage
Test description/Objective: .
Material:
Code Composer Studio v9.3.0
MSP-FET Flash Emulation Tool
USB-UART converter
Screen (Linux software)
Results: .
Conclusion: .
Input Current
Test description/Objective: .
Material:
Code Composer Studio v9.3.0
MSP-FET Flash Emulation Tool
USB-UART converter
Screen (Linux software)
Results: .
Conclusion: .

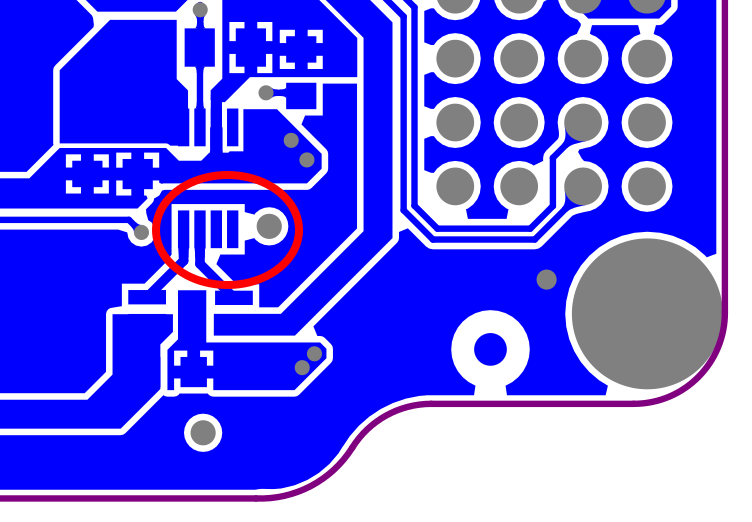

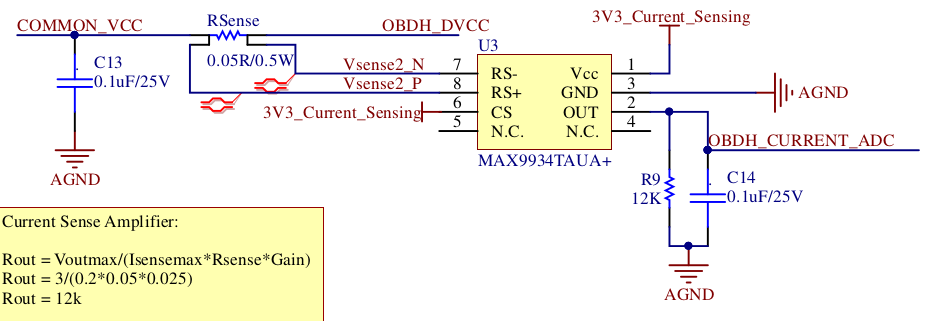

Fig. 41 Current sensing circuit, pinout, and PCB layout.

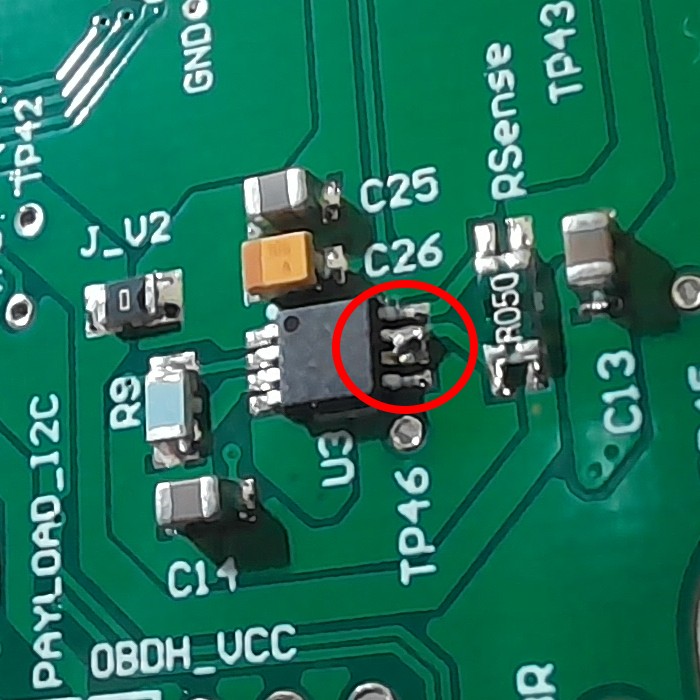

Fig. 42 Current sensor fix.

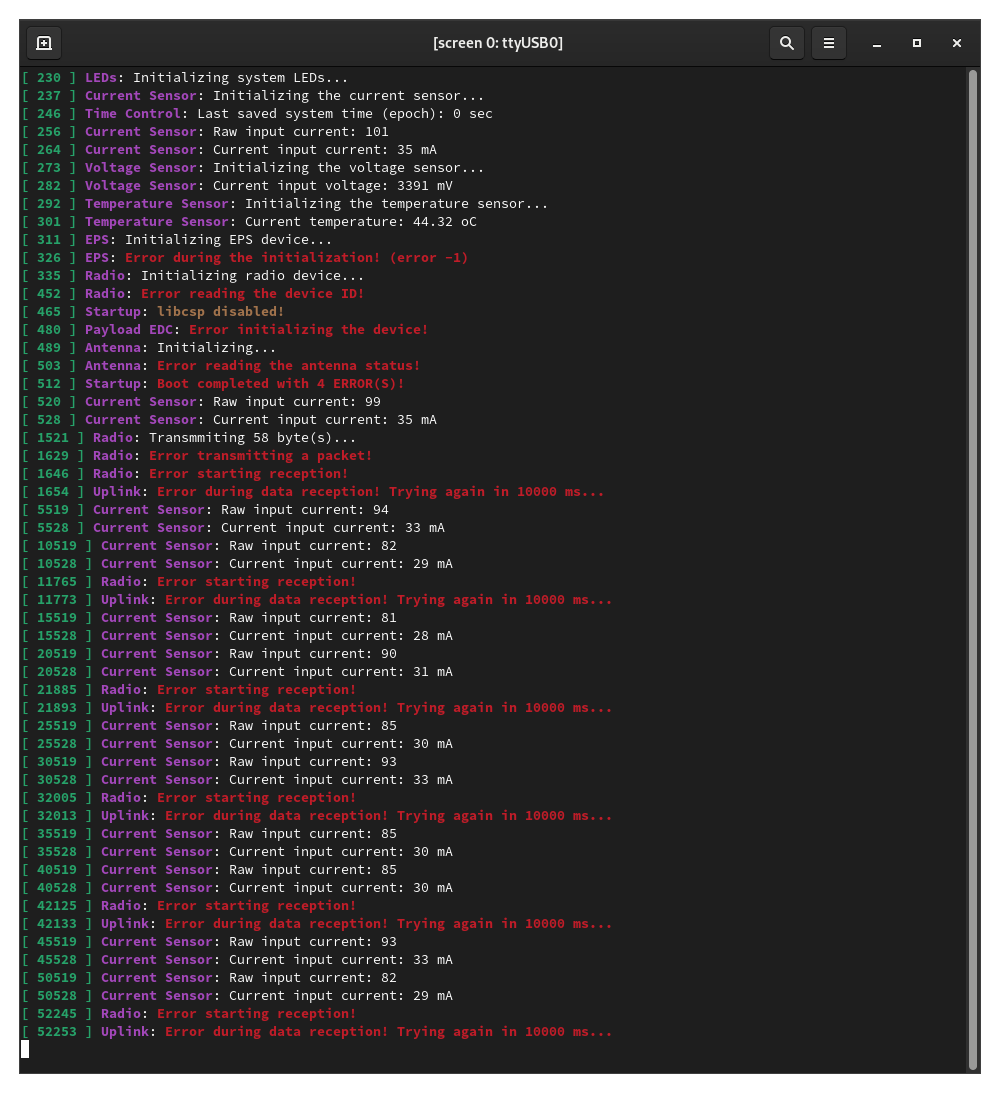

Fig. 43 Log messages with the read values from the current sensor.
Peripherals
NOR Flash Memory
Test description/Objective: Test the functionality of the NOR flash memory by verifying the device ID register of the IC.
Material:
Saleae Logic Analyzer (24 MHz, 8 channels)
Saleae Logic software (v1.2.18)
MSP-FET Flash Emulation Tool
Results: The results of this test can be seen in Fig. 44.
Conclusion: No problems were identified on this test. As shown in Fig. 44, the device ID register was read as expected.

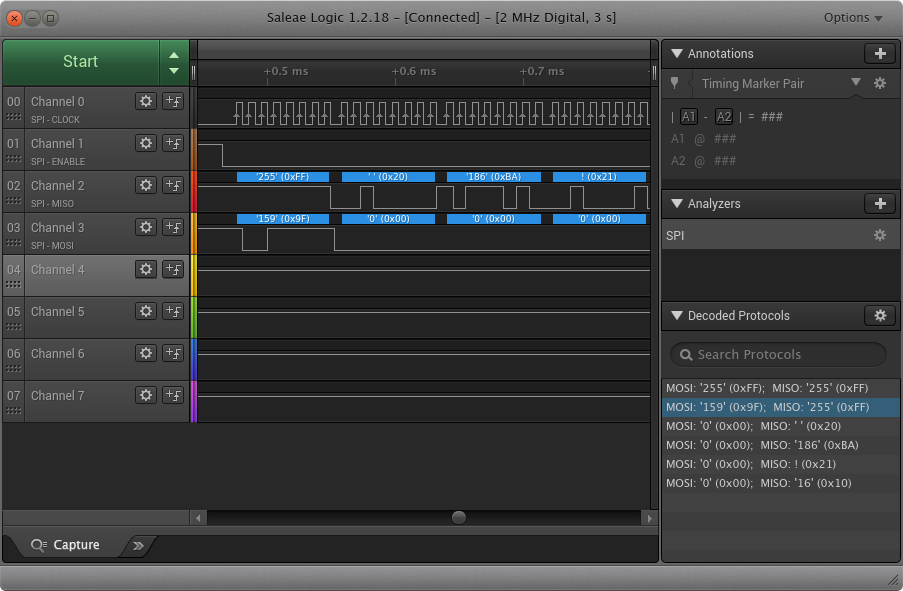

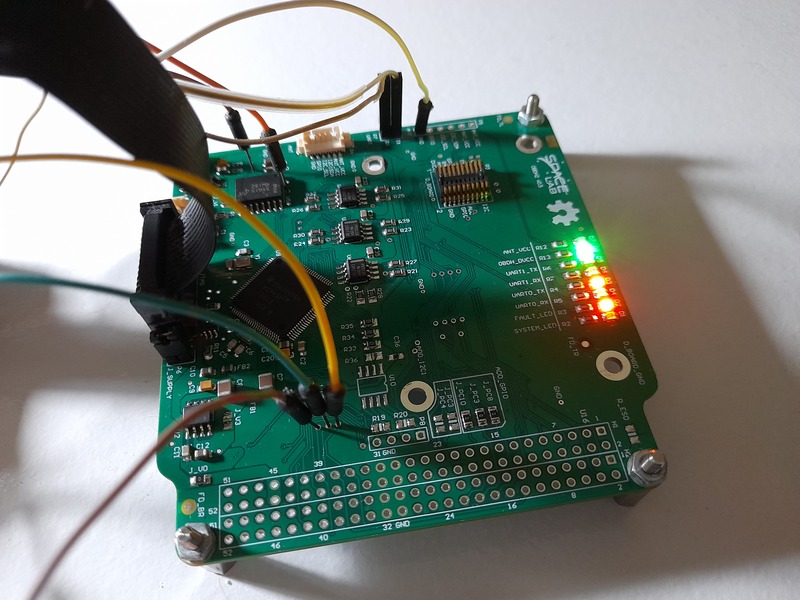

Fig. 44 NOR memory SPI test.
Conclusion
Excluding the current sensor issue, no major problems were identified during the executed tests. For the next fabrication round, the identified mistakes will be corrected.
