EDC Test Report
This appendix is a test report of the EDC board. The purpose of this test is to characterize the main functionalities of the EDC module. The main information about the test is available below:
Date: From 2022/03/03 to 2022/03/14
Testers: Bruno Benedetti, Gabriel M. Marcelino, Laio O. Seman
A picture of the boards used during the tests can be seen in Fig. 79.

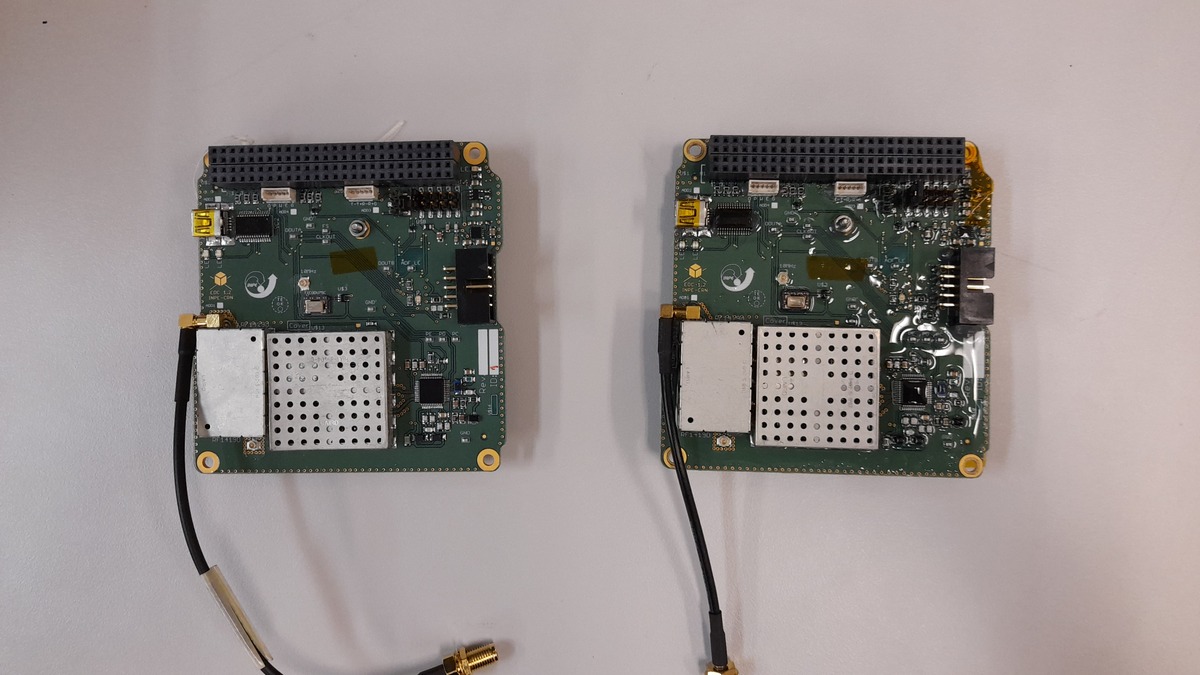

Top side.

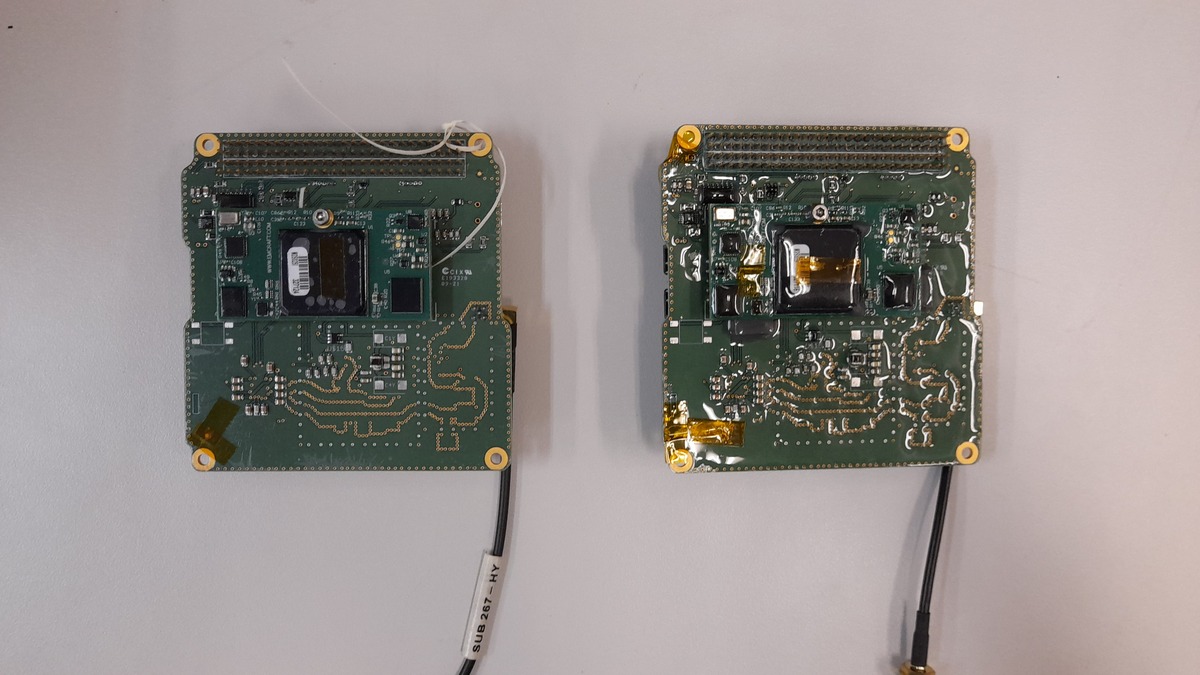

Bottom side.
Fig. 79 Tested EDC boards.
This test is divided into two parts: the command interface test and RF chain test. Both are described below.
Command interface test
The command interface test aims to test the UART command interface available in the PC-104 bus of the module. All available commands were tested in this test.
Used material
The used material is listed below:
EDC boards
USB-UART converter
Saleae Logic Analyzer
Protoboard
Desktop computer
Logic 2 software
Cutecom software
USB cables
Pin header wires
EDC documentation
Setup

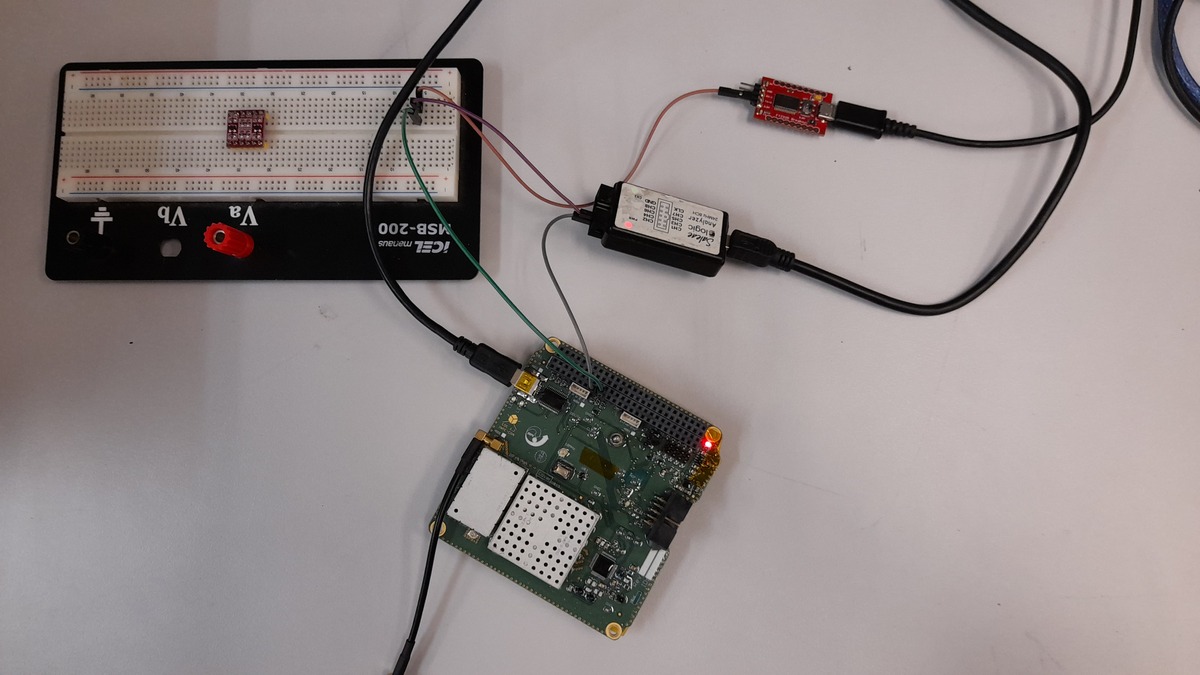

The test setup can be seen in Fig. 80. As seen in the picture, the USB-UART converter connects the UART interface of the EDC directly to a computer. The EDC board is powered directly by its USB debug interface.
Fig. 80 Setup of the EDC’s command interface test.
To confirm and visualize the transmitted and received data, a logic analyzer is connected to the pins of the UART interface (TX and RX).
Results

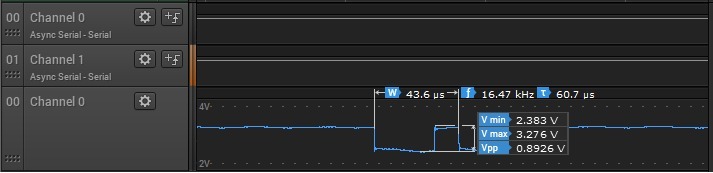

During the first attempts to perform this test, no responses were received from both boards, considering all the available commands. After further investigation with the module developers (INPE-CRN), the issue was found. As can be seen in Fig. 81, the voltage of the RX pin when in a low state is higher than expected, making all bits be interpreted as ones.
Fig. 81 Command interface issue.

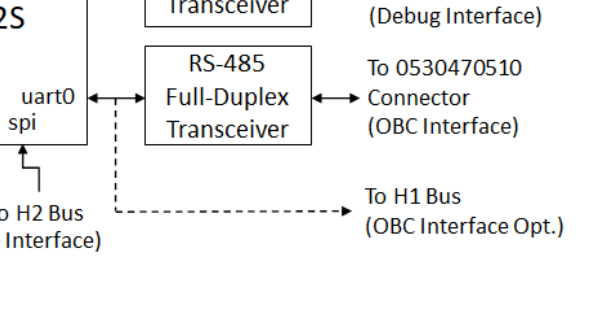

The hypothesis for the cause of this problem is the RS-485 transceiver. As seen in Fig. 82, the RS-485 transceiver and the UART interfaces share the same UART port of the microcontroller. This way, the RS-485 transceiver can cause interference on the RX pin of the UART interface, forcing its state to be high all the time.
Fig. 82 UART and RS-485 interfaces of the EDC.

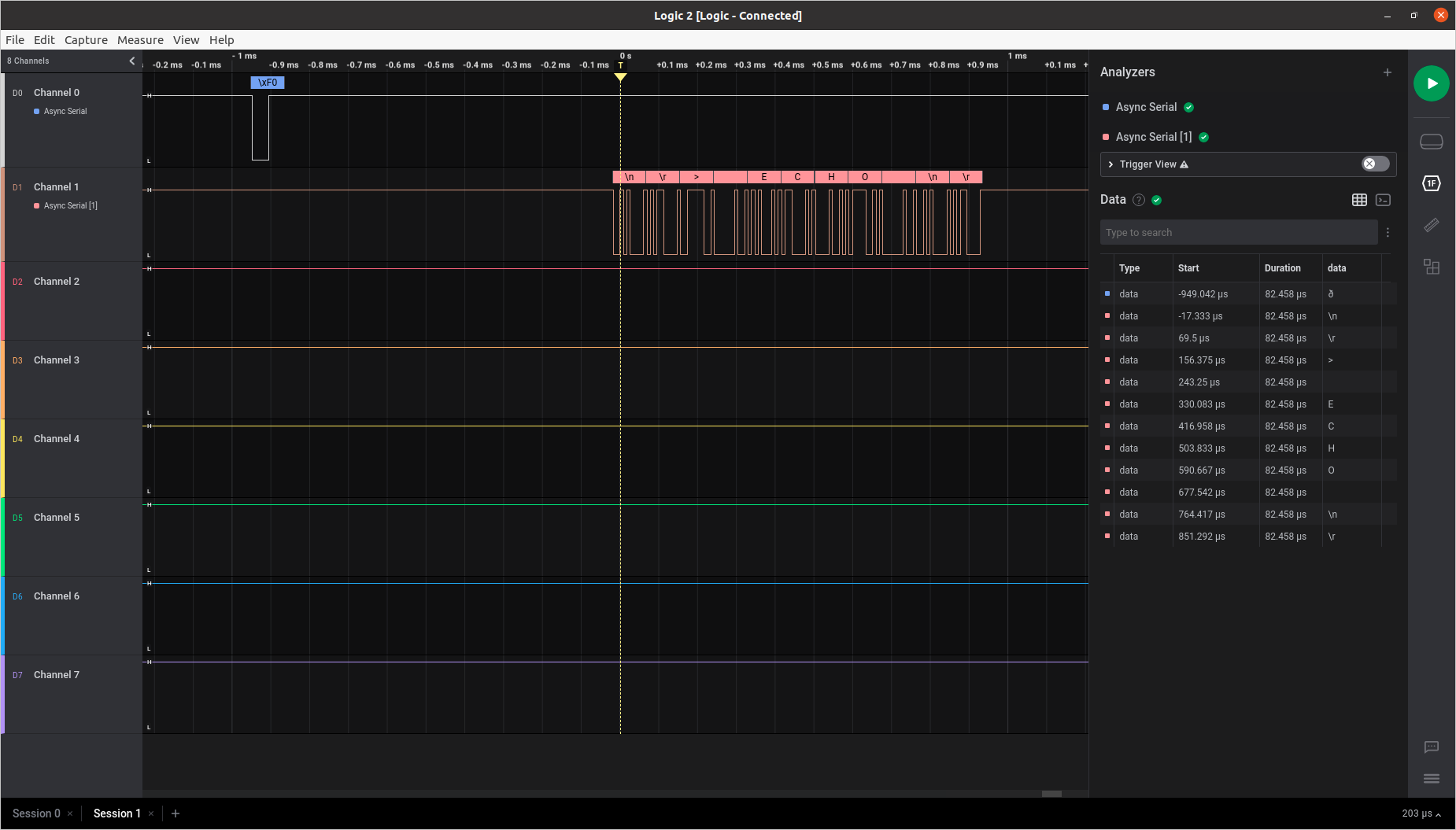

A solution to this problem is to disable the RS-485 transceiver by removing it from the board or putting the enable pin on a disabled state. As it would be difficult to remove this component from the boards safely, the second option was chosen. With a modification in the firmware, the RS-485 transceiver was disabled. After this modification, the UART command interface started to work as expected, as can be seen in Fig. 83 (“echo” command).
Fig. 83 “Echo” command demonstration.
RF chain test
This test simulates a signal transmitted by a DCP directly to the RF input of the EDC module. To emulate the DCP signal, a GNURadio flow generates the packets, and an SDR transmitter transmits the packet to the EDC. This test is divided into two steps: in the first step, we check the transmitted signal by the USRP, and in the second step, the EDC reception and decoding are verified.
Used material
The used material is listed below:
EDC boards
USB-UART converter
Ettus USRP B210 SDR
Desktop computer
GNURadio v3.9
Cutecom software
USB cables
Pin header wires
SMA coaxial cable
30 dB attenuator
RTL-SDR v3
EDC documentation
Setup

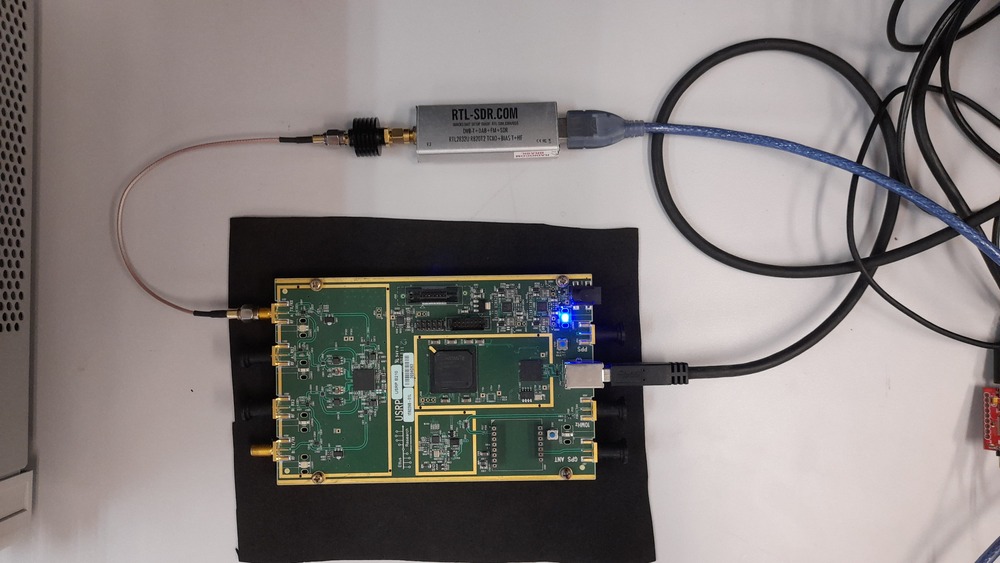

This test is divided in two steps. The setup of the first step can be seen in Fig. 84. As can be seen in the picture, the SDR transmitter is connected directly to an SDR receiver through a 30 dB attenuator.
Fig. 84 Setup of the signal generator test.

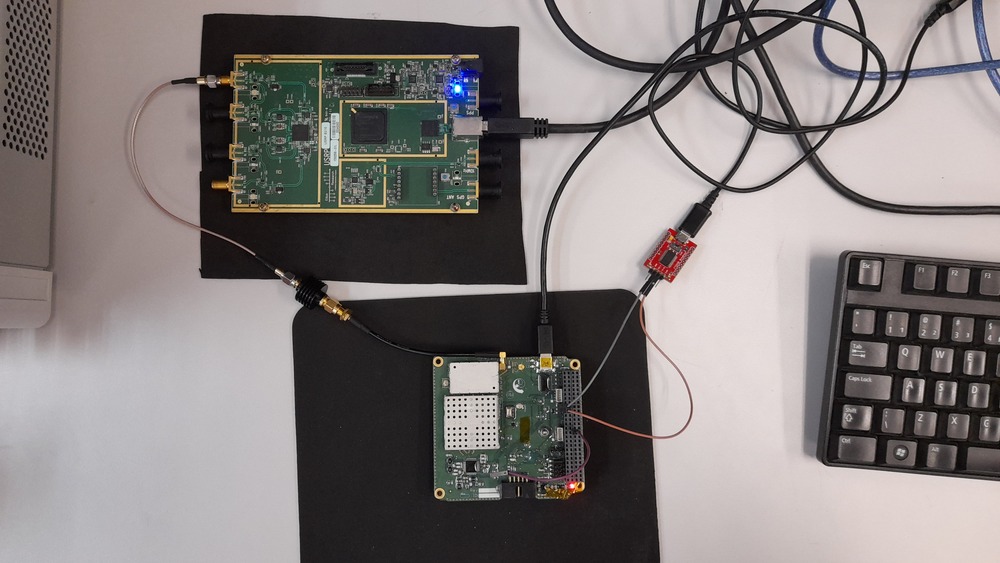

Fig. 85 Setup of the EDC’s RF chain test.

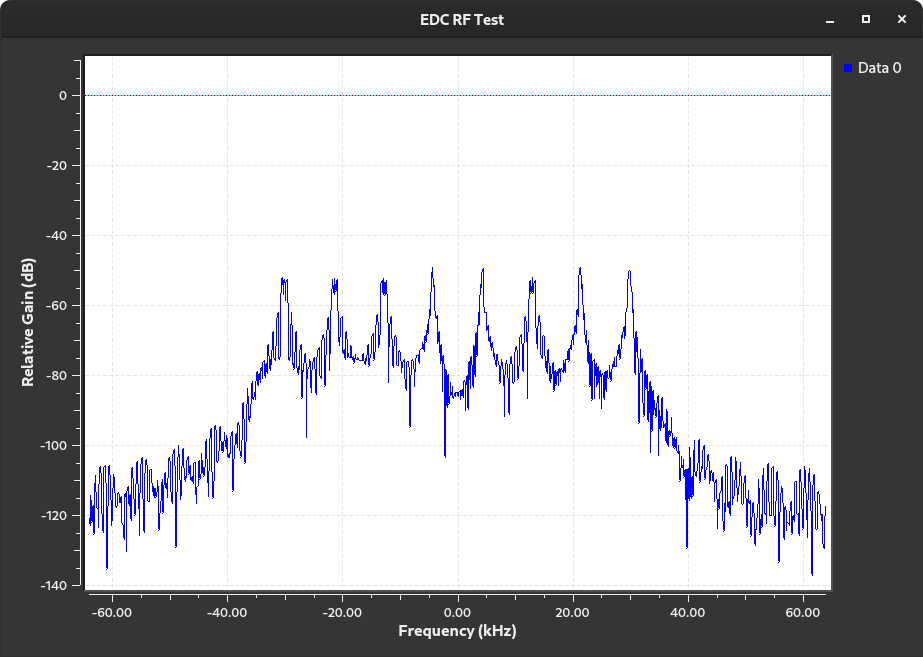

Fig. 86 Generated signal used in the RF chain test.
Results

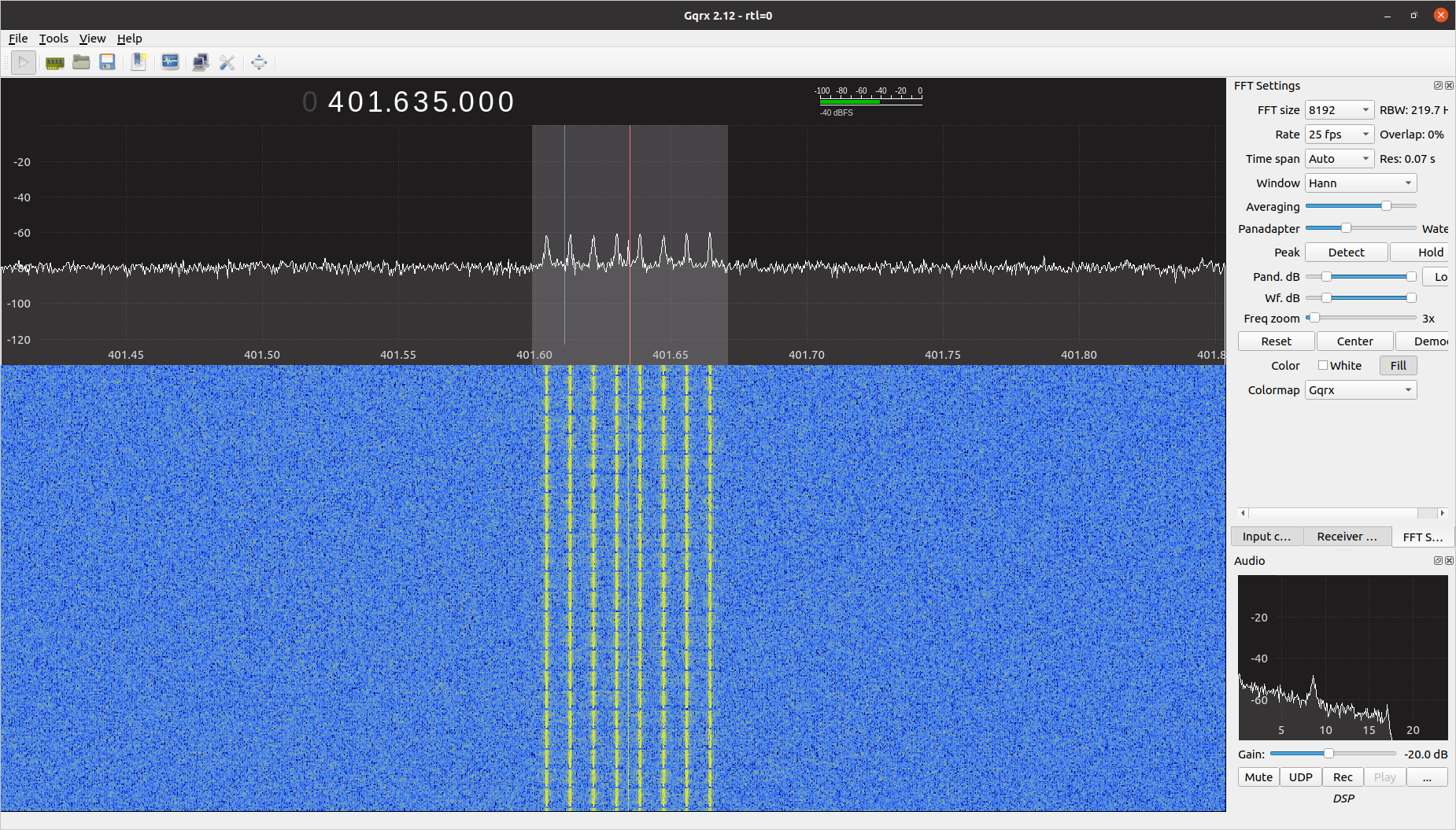

The transmitted signal by the USRP SDR can be seen in Fig. 87.
Fig. 87 Received signal from the EDC stimulus application.

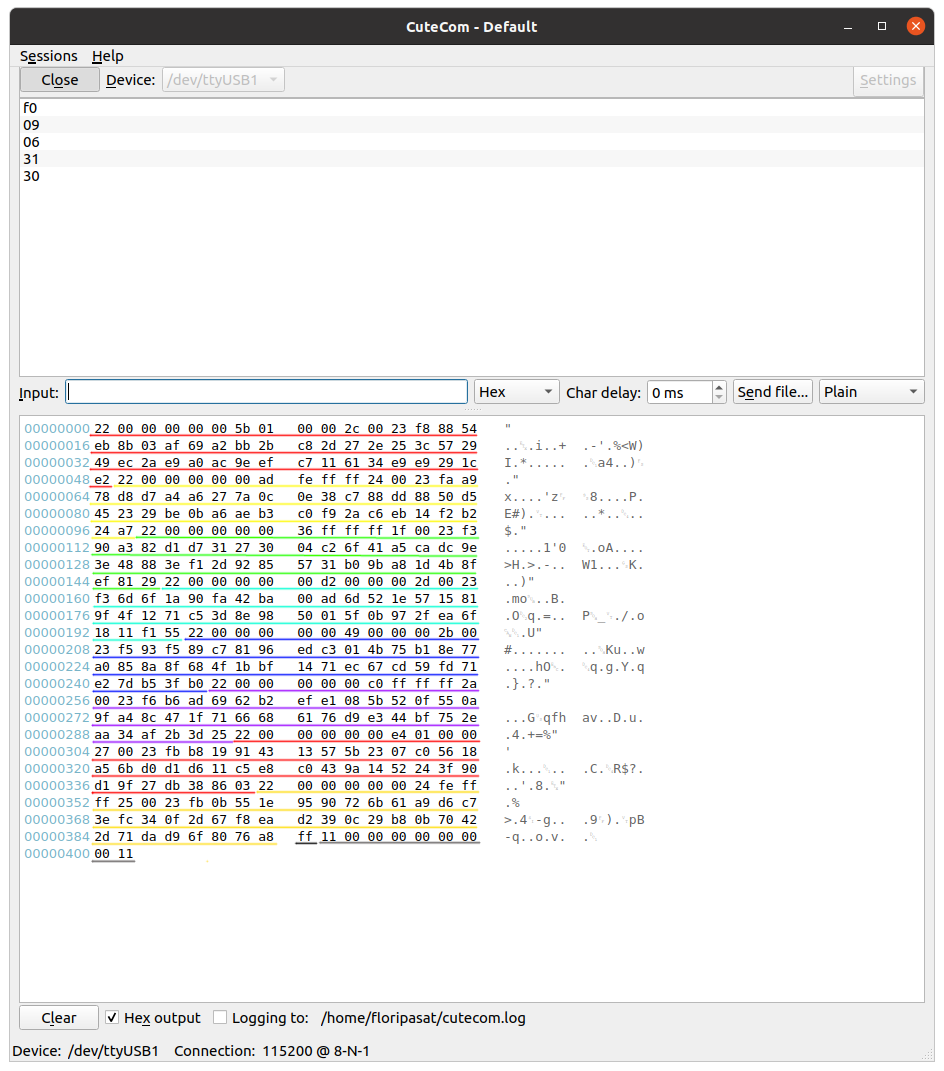

The received and decoded packets by the EDC during the tests are available in Fig. 88. Each color line is a different decoded packet. The last byte sequence indicates the number of available packets in the queue (zero in this case, after reading all packets).
Fig. 88 Received PTT packages (colorful lines).
Conclusion
As presented in this report, an issue with the UART interface was found. A temporary solution was achieved by modifying the current version of the firmware and disabling the RS-485 transceiver by software. However, a better solution should be considered for the flight version of the boards; for example, the RS-485 CI can be unconsidered from the board assembly or disabled by hardware (with a jumper).
As for the RF chain test, no issues were identified so far, using the available stimulus signal, all packages are received and decoded as expected. The commands regarding the package reception also work as planned.
