Introduction

The Catarina Constellation’s Fleet A project adheres to the ECSS-E-ST-10C, a standard that specifies the system engineering implementation for the development of space systems and space products [3]. Both space systems within the project, namely Catarina-A1 and Catarina-A2, follow the standard’s prescribed life cycle model. The culmination of phase C of the project is marked by the CDR event, depicted in Fig. 1. This event signifies the project’s maturity and the incorporation of initial engineering concepts, rooted in the system and technical requirements defined up to this point.

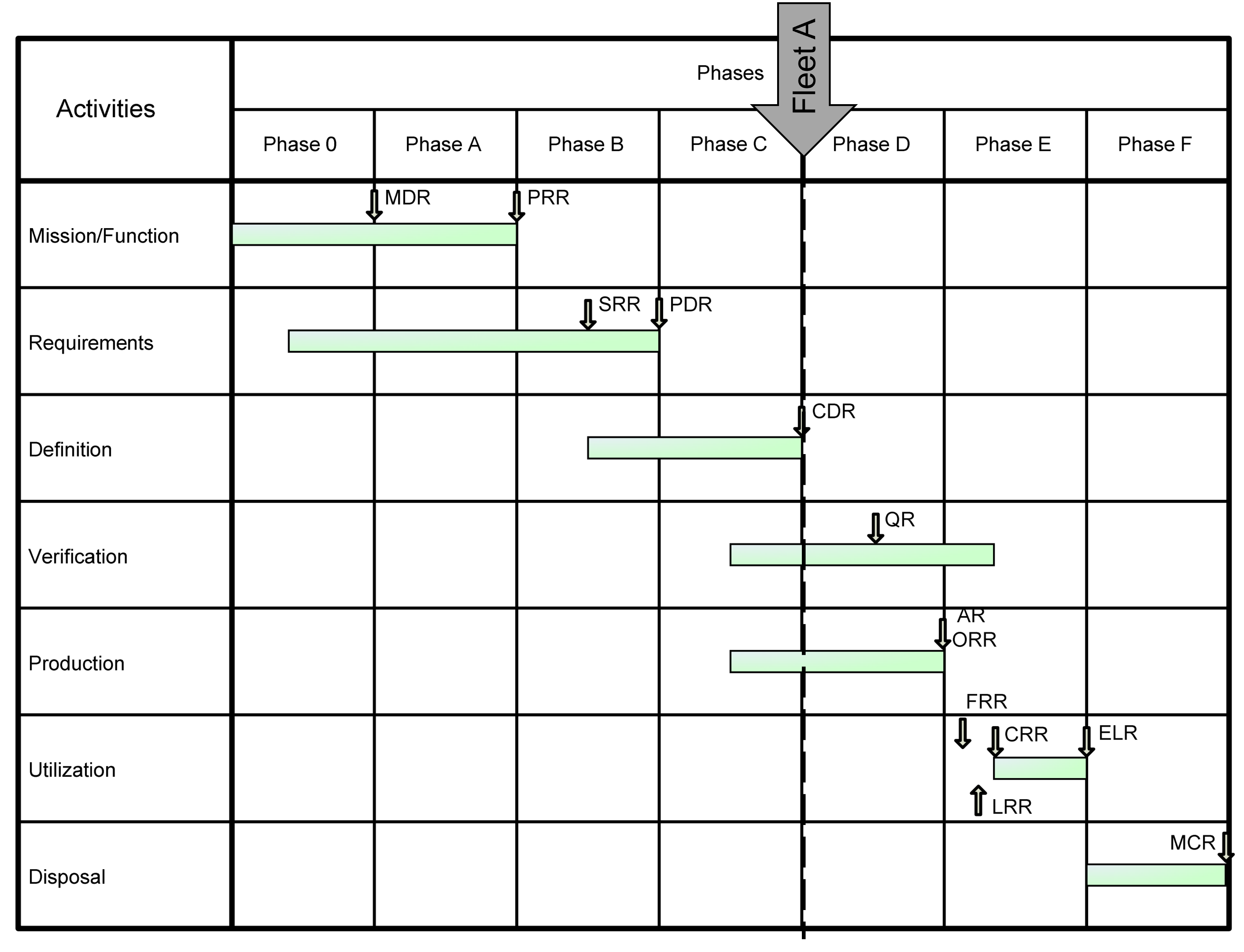

Fig. 1 Project life cycle. Adapted from [3].

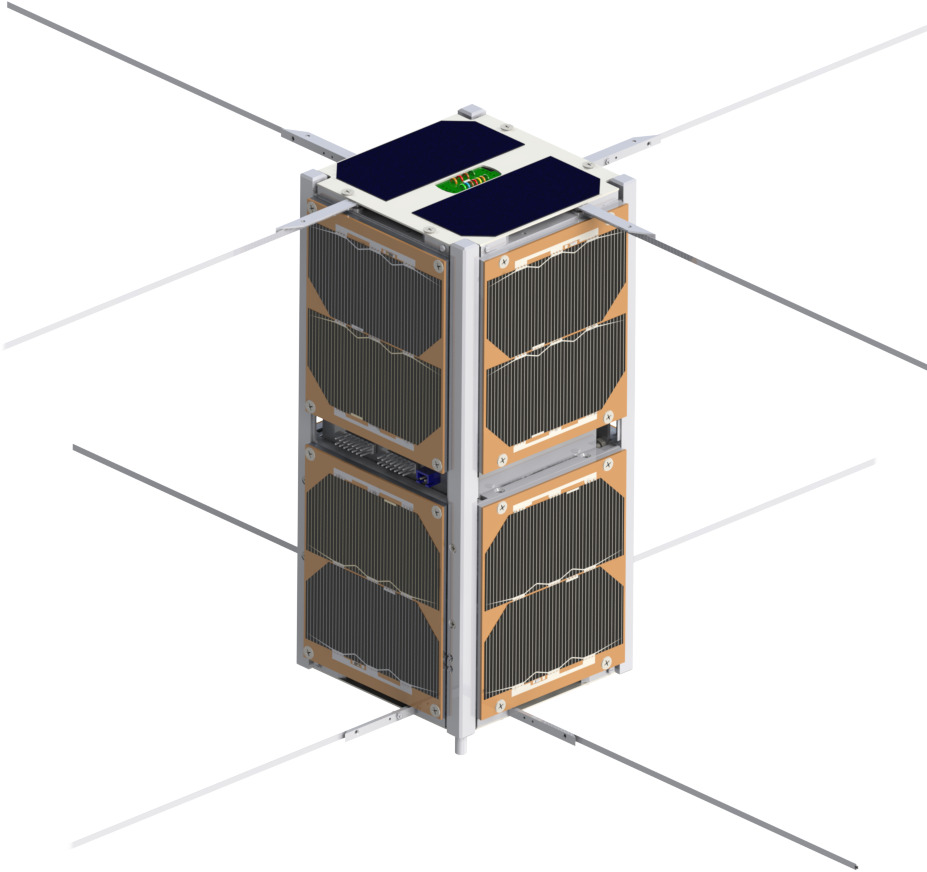

The purpose of CDR is to relate the product’s technical requirements to the engineering solutions proposed by the design team. Thus, the objective of this documentation (as well as updating the data presented in previous reviews) is to present: information to confirm compatibility with the external interfaces, the final design of the space system and Ground Segment, the final AIV plan, and the verification of the space system and Ground Segment requirements state of verification. The conceptual design of the Catarina-A1’s nanosatellite, the main object of this review, can be seen in Fig. 2.

Mission description

About the Catarina Constellation

Catarina Constellation is a nanosatellite-based constellation focused on encouraging technological development in the space sector in Brazil and its application in several fields to contribute to society. Created through Ordinance n. 590, of May 6, 2021 cite{Ordinance}, published by AEB, the constellation is divided into fleets, each with a different mission, outlined from the survey of the needs among the stakeholders of each fleet. At least three fleets are initially estimated, and their missions are indicated below:

Fleet A: Environmental data collection;
Fleet B: Imaging;
Fleet C: Radio occultation.

The constellation idea is changeable so that fleets have as many nanosatellites as needed in their configuration. For Fleet A, UFSC and ISI-SE enter as suppliers of space systems, assuming the roles of representatives of academia and industry in Santa Catarina, respectively, forming the triple helix of industry, academia, and government.

The UFSC has experience with nanosatellite missions such as FloripaSat-1 and Serpens, while the ISI-SE has experience with the VCUB mission. The union of academia and industry transforms knowledge, and academic research into economic activity, and promotes practical knowledge. With that, both institutions can help each other with the development of the CubeSats using their strengths, contributing to the training of human resources in space technology in the state.

Fleet A’s Mission Declaration

Approved in the event of MDR, the mission statement for Fleet A of the Catarina Constellation is as follows:

“National services, such as Civil Defense and the agricultural sector, which use hydrometeorological data measured in loco, need the means to collect data from measurement platforms, preferably national, which stimulates the articulation of the triple helix of industry, academia, and government. In this way, the Catarina Constellation must promote the Brazilian space sector, with a focus on the industry of Santa Catarina, according to Ordinance n. 590, of May 6, 2021, published by the Brazilian Space Agency, which creates the Catarina Constellation Program and the Catarina Consortium.

In this way, it is necessary to demonstrate the integration of data collection nanosatellites with existing systems, the Brazilian Data Collection System (SBCD) and the Integrated Environmental Data System (SINDA), with a measurement platform installed in the territory of the state of Santa Catarina. In the demonstration process, human resources should be trained for the following fleets of the Catarina Constellation program” [22].

Fleet A’s Mission Definition

The mission of Fleet A of the Catarina Constellation consists of launching two CubeSats as technological demonstrators for data collection and transmission. Catarina-A1 will be a 2U CubeSat designed by the team at UFSC, while Catarina-A2 will be designed as a 3U CubeSat by ISI-SE.

The Fig. 3 shows the official functional architecture of Fleet A. Its concepts of operation and further details on how the mission works can be found in Concept of Operations.

The satellites must pass through Santa Catarina, capture data from a DCP based in Florianópolis and relay such data to EMMN, which in turn will add this data packet to SINDA, which will be available to all registered users. In this way, Fleet A will aggregate to SBCD.

For the development of the mission, one of the needs raised was the preference for national technology. For this reason, the main payload of the two space systems will be the EDC, developed by the INPE.

As a technological demonstrator, Fleet A works at the same time as a case study of both the functioning of the nanosatellite-based constellation and the data collection with national technology, adding to the EDC flight inheritance.

Mission objectives

The Table 1 describes the goals and objectives related to the Catarina Constellation’s Fleet A mission.

Table 1 Goals and objectives of the Catarina Constellation’s Fleet A mission.
ID	Goal	ID	Objective
G.1	Collect data with national systems	O.1.1	Collect data from a platform provided by the Civil Defense and adapted by the national industry
		O.1.2	Route data through systems developed/adapted by the national industry, which allows the satellite data link between platforms and data distribution centers
		O.1.3	Use a nanosatellite platform to perform the satellite link
G.2	Distribute data across legacy systems	O.2.1	Integrate the data with the SBCD
		O.2.2	Perform data distribution using SINDA
G.3	Empower future fleets	O.3.1	Using ECSS as a basis for Space Systems Engineering

Project members

The project involves students, professors, and researchers from UFSC and INPE. Additionally, the team responsible for conducting the activities of this phase within the Catarina Constellation’s Fleet A comprised the members described in Table 2.

Table 2 Project members of the Catarina Constellation’s Fleet A (2024/03/18).
Name	Contribution	Institution	Position
Mission
Talita Sauter Possamai	Mission and risk management	UFSC	Professor
Damylle Cristina Xavier Donati	Systems engineering	UFSC	Doctoral student
Augusto Marasca de Conto	Risks management	ISI-SE	Manager
Rodrigo da Silva Cardozo	Orbit analysis	UFSC	Master student
Monike Corleone	Administration	SC2C.Aero	Employee
Catarina-A1 Space System
Talita Sauter Possamai	Project management	UFSC	Professor
Eduardo Augusto Bezerra	Technical management	UFSC	Professor
Xisto Lucas Travassos	Frequency license coordination	UFSC	Professor
Laio Oriel Seman	Technical management	UFSC	Professor
Kleber Vieira de Paiva	Testing	UFSC	Professor
Manoel Jozeane Mafra de Carvalho	Payload	INPE	Researcher
Damylle Cristina Xavier Donati	Systems engineering	UFSC	Doctoral student
Ludmila Kopko	Systems engineering	UFSC	Student
Rodrigo da Silva Cardozo	Thermal experimental analysis	UFSC	Master student
Gabriel Mariano Marcelino	Technical development	UFSC	Researcher
João Cláudio Elsen Barcellos	EPS	UFSC	Master student
Caique Sales de Miranda Gomes	Mechanical subsystem	UFSC	Student
Ramon de Araujo Borba	EPS	UFSC	Student
Vitória Beatriz Bianchin	Groundstation/Payload	UFSC	Student
Miguel Boing	TTC	UFSC	Student
Carlos Porto	OBDH	UFSC	Student
Gabriel Cabral Marcílio	Scientific divulgation	UFSC	Student
Maria Eduarda Rezende	Mechanical subsystem	UFSC	Student
Matheus Wagner	ACS	UFSC	Student
Rebecca Quintino do O	Systems engineering/Testing	UFSC	Student
Sheila Costa	Procurement	UFSC	Student
EMMN Ground System
Marcos Aurelio Ferreira Dos Santos	Coordination	INPE-COENE	Researcher

Most of the modules and methods used in this project are based on past works, mainly the FloripaSat-1 and the EDC projects. The list of the indirectly involved people is much bigger but not indicated in this document.

Mission patch

The mission patch of the Catarina Constellation can be seen in Fig. 4.
